HiMax® Multiaxial Reinforcements

HiMax® multiaxial reinforcements allow manufacturers to process multiple layers of unidirectional fibers in a single fabric.
contact our team
Our PRODUCT

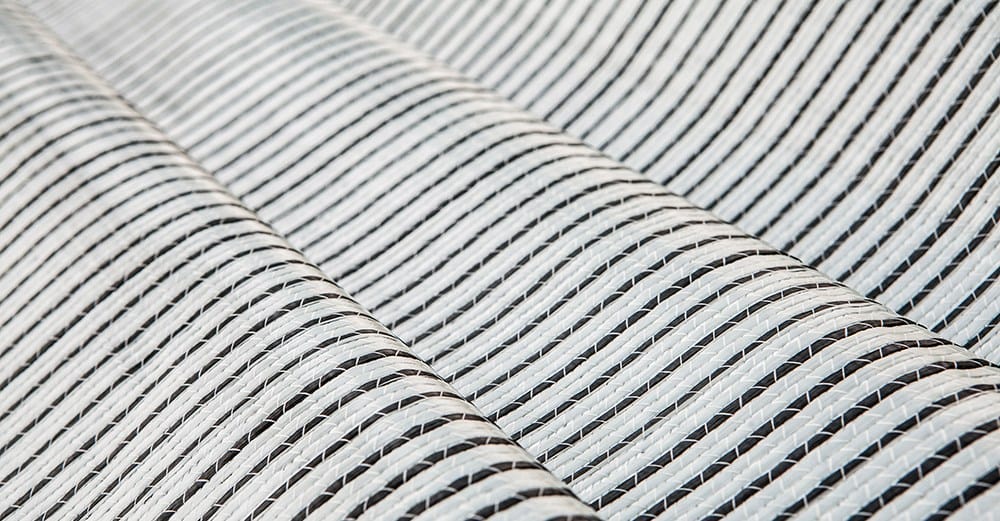

HiMax® Multiaxial Reinforcements, also known as non-crimp fabrics (NCF), are multiple layers of unidirectional fibers, with each ply placed in a different orientation or axis.

Why Choose Our HiMax® Multiaxial Reinforcements

HiMax® multiaxial reinforcements offer several advantages over traditional fabric forms:

  • The reinforcing fibers can be placed in different axis to optimize the performance of the finished laminate
  • The avoidance of resin-rich areas means it is easy to achieve a higher weight fraction (wf)
  • Non-crimped fibers give higher tensile and flexural properties in the finished laminate
  • There is reduced print-through – especially important on boat hulls and automotive applications
  • Fabrics are easier to cut and handle as the stitching holds the material together
  • Heavier combinations are possible, meaning higher deposition rates
  • The straight uncrimped fibers allow good resin penetration and flow which is ideal for infusion and light-RTM, while the stitching aids resin migration through the layers (Z-direction) which is perfect for maximizing infusion rates
Explore Our Product Portfolio

Discover Our HiMax® Multiaxial Reinforcements
Offerings

The range includes fabrics manufactured by Hexcel in Leicester, UK at the site that was formerly Formax and was acquired by Hexcel in 2016.
HiMax® Multiaxial Reinforcements

HiMax® Carbon Multiaxials

Carbon multiaxials are used predominantly in manufacturing components for the aerospace, automotive, marine and industrial markets.
LEARN MORE
HiMax® Multiaxial Reinforcements

HiMax® Glass Multiaxials

Hexcel produces a comprehensive range of glass multiaxial fabrics, including unidirectionals, +/-45 Biaxials, 0/90 Biaxials, Triaxials, and Quadaxials.
LEARN MORE
HiMax® Multiaxial Reinforcements

HiMax® Aramid Multiaxials

Aramid Multiaxial (non-crimp) fabrics are used predominantly in manufacturing components for the aerospace, automotive, marine and industrial markets.
LEARN MORE
HiMax® Multiaxial Reinforcements

Fabrics for Infusion

Hexcel has developed a full range of fabrics specifically for customers who use infusion.
LEARN MORE
focus area

Properties

HiMax® multiaxial reinforcements provide strength and stiffness in multiple directions depending on the controlled orientation of the fibers. The weight distribution in the fabric is optimized and it is possible to mix fiber types.

The non-crimp concept allows in-plane mechanical properties to be enhanced, such as tension and flexion. In a complex lay-up there is less material waste and the lay-up time is reduced by using thicker materials. High tow count fibers can be used.
Let’s Talk HiMax® Multiaxial Reinforcements

Our team can guide you to the right solution for your design, scale, and performance targets.

contact OUR TEAM Explore products
