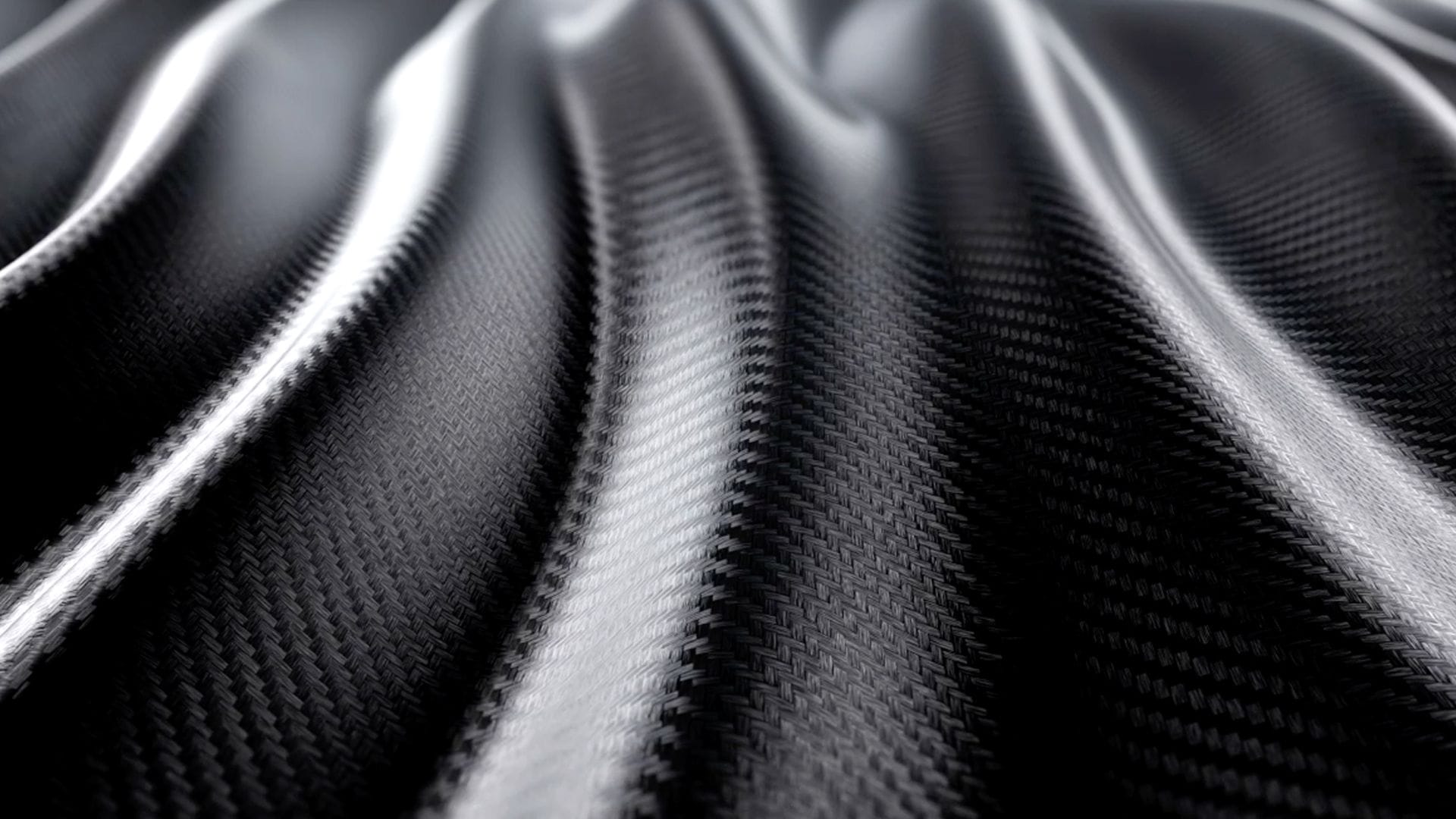

Carbon Fiber Reinforcements
Hexcel’s carbon fiber reinforcements are widely qualified by all major aircraft manufacturers – in both dry and prepreg form.
Scroll to explore
Explore Our Product Portfolio

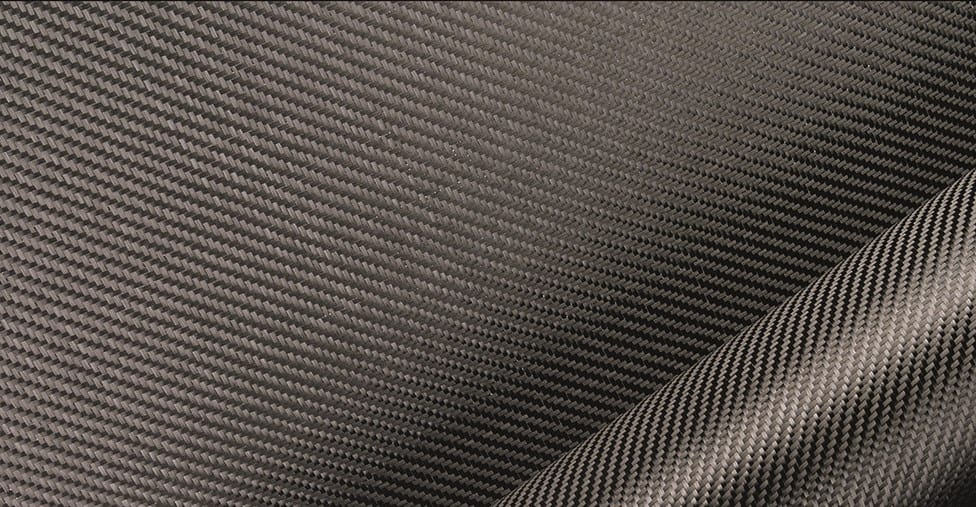

Discover Our HexForce® Fabric Range
HexForce® woven fabric range is the most complete line of reinforcements for aerospace and industrial markets. HexForce® woven fabrics are available in a range of weave styles, fibers, and areal weights, the selection of which depends on several criteria including the required mechanical properties, visual aesthetics, drapeability, and resin impregnation HexForce® standard reinforcements provide strength and stiffness in the 0 and 90 direction, HexForce® Unidirectional reinforcements provide strength and stiffness in the 0 direction only, and HexForce® Bias Weave reinforcements provide strength and stiffness in the +45 and – 45 directions. Selected HexForce reinforcements may be certified to a multitude of industry and OEM specifications.
Glass Fiber Reinforcements
The versatility of glass as a fiber makes it unique industrial textile material.
Aramid Fiber Reinforcements
Aramid fibers are 43% lighter than glass fiber, with a density of 1.44 g/cc compared to 2.5 g/cc for glass fiber.
Specialty Fiber Reinforcements
Hexcel features custom fabric design and manufacturing.
Engineering Starts Here
Technical Resources
Find all the documentation you need to evaluate, specify, and implement Hexcel carbon fiber composites.
Glass
| Products | Weave | Fabric Weight (oz/yd2) / (g/m2) | Fabric Thickness (mils) / (mm) | Downloads |
|---|---|---|---|---|
| HexForce 108 | Plain | 1.43 / 48 | 2.5 / 0.06 | US version |
| HexForce 112 | Plain | 2.1 / 71 | 3.2 / 0.08 | US version |
| HexForce 116 | Plain | 3.16 / 107 | 3.8 / 0.1 | US version |
| HexForce 117 | Plain | 2.4 / 81 | 2.6 / 0.07 | US version |
| HexForce 120 | 4H Satin | 3.16 / 107 | 3.5 / 0.09 | US version |
| HexForce 220 | 4H Satin | 3.22 / 109 | 3.5 / 0.09 | US version |
| HexForce 477 | 4H Satin | 4.11 / 139 | 4.7 / 0.12 | US version |
| HexForce 1064 | Plain | 4.62 / 157 | 5.7 / 0.14 | US version |
| HexForce 1080 | Plain | 1.41 / 48 | 2.2 / 0.06 | US version |
| HexForce 1125 | Plain | 2.65 / 90 | 3.6 / 0.09 | US version |
| HexForce 1280 | Plain | 1.6 / 54 | 2.4 / 0.06 | US version |
| HexForce 1507 | Leno | 10.3 / 349 | 25 / 0.63 | US version |
| HexForce 1522 | Plain | 3.67 / 124 | 5.3 / 0.13 | US version |
| HexForce 1526 | Plain | 5.3 / 180 | 6.2 / 0.16 | US version |
| HexForce 1528 | Plain | 6.03 / 204 | 7 / 0.18 | US version |
| HexForce 1543 | 4H Satin | 8.69 / 295 | 7.8 / 0.2 | US version |
| HexForce 1557 | 4H Satin | 5.26 / 178 | 5.5 / 0.14 | US version |
| HexForce 1564 | Plain | 12.4 / 420 | 15 / 0.38 | US version |
| HexForce 1568 | Leno | 7.97 / 270 | 16.5 / 0.42 | US version |
| HexForce 1579 | Plain | 3.68 / 125 | 4.5 / 0.11 | US version |
| HexForce 1581 | 8H Satin | 8.79 / 298 | 8.5 / 0.22 | US version |
| HexForce 1582 | 8H Satin | 13.63 / 462 | 12.7 / 0.32 | US version |
| HexForce 1583 | 8H Satin | 16.52 / 560 | 16.2 / 0.41 | US version |
| HexForce 1597 | Plain | 38.57 / 1308 | 37.8 / 0.96 | US version |
| HexForce 1675 | Plain | 2.85 / 97 | 4.3 / 0.11 | US version |
| HexForce 1680 | 8H Satin | 5.7 / 193 | 6.1 / 0.15 | US version |
| HexForce 1800 | Plain | 9.33 / 316 | 11.1 / 0.28 | US version |
| HexForce 2532 | Plain | 6.89 / 234 | 10 / 0.25 | US version |
| HexForce 3582 | 8H Satin | 13.7 / 465 | 14.4 / 0.37 | US version |
| HexForce 3733 | Plain | 5.8 / 197 | 8 / 0.2 | US version |
| HexForce 3743 | 4H Satin | 8.45 / 287 | 8 / 0.2 | US version |
| HexForce 3783 | 8H Satin | 16.08 / 545 | 15.7 / 0.4 | US version |
| HexForce 4522 | Plain | 3.64 / 123 | 5.1 / 0.13 | US version |
| HexForce 4533 | Plain | 5.6 / 190 | 7.4 / 0.19 | US version |
| HexForce 4700 | Plain | 4.4 / 149 | 4.7 / 0.12 | US version |
| HexForce 6543 | 4H Satin | 8.5 / 288 | 9.1 / 0.23 | US version |
| HexForce 6557 | 4H Satin | 5.4 / 183 | 5.8 / 0.15 | US version |
| HexForce 6581 | 8H Satin | 8.75 / 297 | 10.4 / 0.26 | US version |
| HexForce 6781 | 8H Satin | 8.92 / 302 | 9.5 / 0.24 | US version |
| HexForce 7500 | Plain | 9.41 / 319 | 11.8 / 0.3 | US version |
| HexForce 7520 | Plain | 8.37 / 284 | 11.4 / 0.29 | US version |
| HexForce 7532 | Plain | 7.25 / 246 | 10 / 0.25 | US version |
| HexForce 7533 | Plain | 5.63 / 191 | 7.3 / 0.19 | US version |
| HexForce 7544 | 2 End Plain | 18 / 610 | 19.1 / 0.49 | US version |
| HexForce 7580 | Plain | 6.2 / 210 | 7.8 / 0.2 | US version |
| HexForce 7587 | Mock Leno | 19.7 / 668 | 27.2 / 0.69 | US version |
| HexForce 7594 | Triple Plain | 17.83 / 605 | 16.5 / 0.42 | US version |
| HexForce 7597 | Double Satin | 38 / 1288 | 40.2 / 1.02 | US version |
| HexForce 7628 | Plain | 6.09 / 206 | 6.8 / 0.17 | US version |
| HexForce 7715 | Modified Plain | 7.3 / 248 | 7.7 / 0.2 | US version |
| HexForce 7725 | 2/2 Twill | 8.8 / 298 | 9.3 / 0.24 | US version |
| HexForce 7781 | 8H Satin | 8.81 / 299 | 8.6 / 0.22 | US version |
| HexForce 8800 | 4H Fancy Leno | 8.23 / 279 | 17.8 / 0.45 | US version |
| HexForce 6781HT | 8H Satin | 9.02 / 306 | 9.6 / 0.24 | US version |
Specialty
| Products | Weave | Fabric Weight (oz/yd2) / (g/m2) | Fabric Thickness (mils) / (mm) | Downloads |
|---|---|---|---|---|
| HexForce AGP193PBLS | Plain | 7.67 / 260 | US Version | |
| HexForce TEF7 | 5H Satin | 8.59 / 291 | 11.6 / 0.29 | US Version |
Carbon
| Products | Weave | Fabric Weight (oz/yd2) / (g/m2) | Fabric Thickness (mils) / (mm) | Downloads |
|---|---|---|---|---|
| HexForce 84 | Plain | 2.48 / 84 | US Version | |
| HexForce 130 | Plain | 3.75 / 127 | US Version | |
| HexForce 160 | Plain | 3.92 / 133 | US Version | |
| HexForce 262 | Plain | 4.79 / 162 | US Version | |
| HexForce 282 | Plain | 5.8 / 197 | US Version | |
| HexForce 284 | 2/2 Twill | 5.8 / 197 | US Version | |
| HexForce 286 | 4H Satin | 5.8 / 197 | US Version | |
| HexForce 433 | 5H Satin | 8.4 / 285 | US Version | |
| HexForce 463 | 2/2 Twill | 8.4 / 285 | US Version | |
| HexForce 584 | 8H Satin | 11 / 373 | US Version | |
| HexForce 613 | 5H Satin | 11.1 / 376 | US Version | |
| HexForce 670 | 2/2 Twill | 19.8 / 671 | US Version | |
| HexForce 690 | 2×2 Basket | 18.7 / 634 | US Version | |
| HexForce 48193 | Plain | 5.7 / 193 | US Version | |
| HexForce 48370 | 2/2 Twill | 10.9 / 370 | US Version | |
| HexForce AGP193-P | Plain | 5.7 / 193 | US Version | |
| HexForce AGP280-5H | 5H Satin | 8.4 / 285 | US Version | |
| HexForce AGP370-5H | 5H Satin | 11.1 / 376 | US Version | |
| HexForce AGP370-8H | 8H Satin | 11 / 373 | US Version | |
| HexForce GA045 | Plain Heatset | 4.4 / 149 | US Version | |
| HexForce GA060 | Plain Heatset | 6.7 / 227 | US Version | |
| HexForce GA090 | Plain Heatset | 8.9 / 302 | US Version | |
| HexForce SGP196-P | Plain | 5.8 / 197 | US Version | |
| HexForce SGP203-CS | 4H Satin | 6 / 203 | US Version | |
| HexForce SGP370-8H | 8H Satin | 11 / 373 | US Version | |
| HexForce XSGP196-P | +/- 45° Plain | 5.78 / 196 | US Version | |
| HexForce XC1400 | +/-45 4H Satin | 6 / 203 | US Version | |
| HexForce RGP193-2T ZB | 2/2 Twill | 5.75 / 195 | US Version | |
| HexForce RGP193-P ZB | Plain | 5.75 / 195 | US Version |
Additional Resources
GUIDE
HexForce® and HexPly® Aerospace Selector
Focuses on Hexcel’s resin matrices, direct processes and reinforcements for aerospace prepregs.
GUIDE
HexForce® and HexPly® Industrial Selector
Find out more about HexForce® Reinforcements for the industrial industry.
BROCHURE
HexForce® Bias Weave
Discover the HexForce® Bias Weave product range and what parts they are suitable for.
bROCHURE
HexForce® Technical Fabrics Handbook
Technical fabrics handbook that includes woven and unidirectional fabrics, glass, carbon and aramid.
